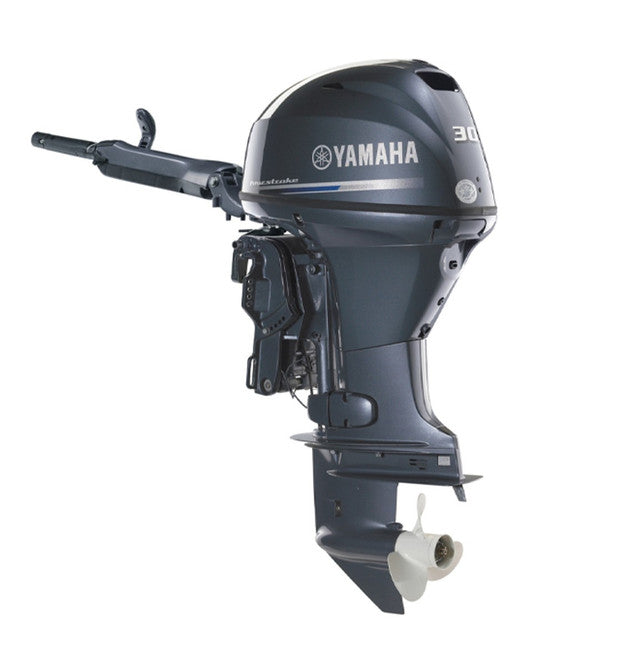

Yamaha 30 HP Outboard Motors
SKU: F30LEHA
Yamaha's 747-cc 30-hp midrange outboards boast a streamlined design and solid performance. At just 214 pounds, it’s suitable for lightweight craft such as aluminum fishing boats and inflatables. Its Nitro Assist Tilt makes tilting almost effortless.
- Available for mechanical or tiller-handle control
- Only 214 pounds
- Available in a 20” shaft
- Powerful 17-amp alternator
- Optional Variable Trolling RPM Switch (VTS®)
The 747-cc 30-hp midrange is compatible with tiller and mechanical controls and a range of gauges and props to suit your preference for performance, control and the display of data. It also allows you to access our Variable Trolling RPM Switch (VTS®) depending on your rigging. Explore compatible components below and contact your dealer for rigging expertise.
| Weight † | 97 kg (214 lbs) - 101kg (223 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | 3 cyl |
| Displacement | 747cc |
| Bore x Stroke | 65 x 75mm (2.56 x 2.95 in.) |
| Prop Shaft Horsepower | 30hp at 5500rpm |
| Alternator Output at W.O.T. | 17 Amp |
| Compression Ratio | 9.4:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 2-Star |
| Exhaust | Through Propeller |
| Intake | 6 |
| Ignition | CDI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 1.7L/1.5L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20" |
| Degree of Tilt | 65° - 66° |
| Degree of Trim | -3° through +20° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
