Minn Kota Shafts & Lower Unit Assemblies

Contact Lakeside Marine & Service with your Minn Kota trolling motor's serial number to identify the correct replacement lower unit and shaft assembly. Match the replacement to your motor's voltage, such as 12V, 24V, or 36V, and shaft length, such as 45, 52, 60, or 72 inches. These are examples, not interchangeable options for every model. We can use your serial number to help confirm the correct assembly for your specific motor.

If you are unsure of your motor's specifications or it has been modified, let us know before ordering. See our Minn Kota serial number guide for help identifying your motor.

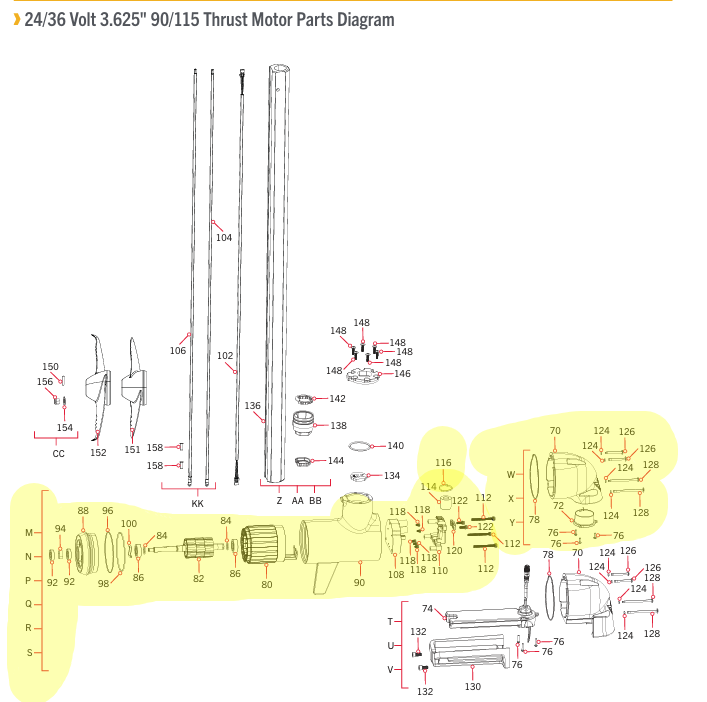

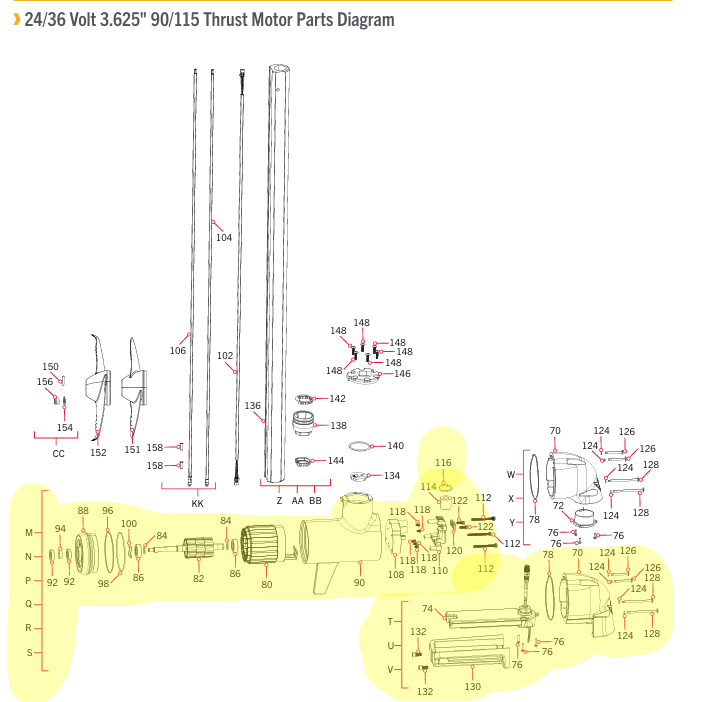

You can also look at the Minn Kota parts diagrams to find the lower unit and shaft assembly listed for your specific motor.

Please text 815 246 2535 or email support@lakesidemarineandservice.com with the serial number and a description of the damage or problem.

On brushed Minn Kota Terrova, Ulterra, and Ultrex trolling motors, the shaft is pressed into the center housing. You cannot replace just the bare shaft. For some shaft lengths, you can purchase a shaft and tube assembly and reuse your existing lower unit components. We recommend replacing the seals when taking this approach. Otherwise, the complete shaft and lower unit assembly must be replaced.

On QUEST models, the shaft can be replaced separately. We also recommend replacing the seals where the lower unit meets the shaft.

You can also check the Minn Kota parts diagrams for your specific motor.

Before ordering, text 815 246 2535 or email support@lakesidemarineandservice.com with your motor's serial number so Lakeside Marine & Service can confirm the correct replacement shaft or lower unit assembly.

Minn Kota lower unit assemblies are not generally interchangeable across voltage, thrust rating, shaft length, or brushed and QUEST motor designs. Replace your assembly with the correct match for your motor. A non-QUEST brushed trolling motor cannot be converted to QUEST by installing a QUEST motor assembly because the components do not match.

Limited changes may be possible, such as changing the built-in transducer or, in some cases, the shaft length. A shaft-length change may require additional parts.

You can check the Minn Kota parts diagrams for your specific motor.

Before ordering, text 815 246 2535 or email support@lakesidemarineandservice.com with your motor's serial number and the change you want to make so Lakeside Marine & Service can confirm the correct parts.

Replacing the complete Minn Kota lower unit assembly may be more cost-effective than rebuilding it when there is a broken magnet or severe internal corrosion. A seal and brush kit alone will not address those types of damage.

The best repair option depends on the condition of the lower unit and the parts needed. Text 815 246 2535 or email support@lakesidemarineandservice.com with your motor's serial number and details or photos of the damage. Lakeside Marine & Service can help you choose between repair parts and a replacement assembly.

If you would like to look up repair parts for your motor, check the Minn Kota parts diagrams, then browse our Minn Kota lower unit parts and repair kits.

For someone who is mechanically inclined, replacing a Minn Kota motor and tube assembly is generally straightforward. The work involved depends on which replacement assembly you purchase. Disconnect the trolling motor from power before beginning any repair.

Complete motor and tube assembly: Remove the control head from the top of the shaft, then slide the old shaft and motor assembly out of the steering housing. Install the new assembly by reversing the removal process.

Shaft and center housing assembly: Follow the same removal process, but also disassemble the old lower unit and transfer the reusable lower unit components to the new shaft and center housing assembly. Use the correct new seal kit when reassembling the lower unit.

Lower unit assembly only: You will also need to install the shaft. Use the correct new seals where the lower unit meets the shaft. This involves more work than replacing a complete motor and tube assembly.

You can check the Minn Kota parts diagrams to identify the components and seal kit for your specific motor.

If you have questions, text 815 246 2535 or email support@lakesidemarineandservice.com with your motor's serial number. Lakeside Marine & Service can help confirm the correct replacement assembly and seal kit before you begin.

On brushed Minn Kota Terrova, Ulterra, and Ultrex models, the shaft is pressed into the center housing, so the shaft alone is not a separate replacement option. For some shaft lengths, a shaft and tube assembly is available that allows you to reuse the lower unit components. We recommend replacing the seals when taking this approach. Otherwise, the complete shaft and lower unit assembly must be replaced.

On QUEST models, the shaft can be replaced separately. We also recommend replacing the seals where the lower unit meets the shaft.

Contact Lakeside Marine & Service with your motor's serial number to confirm the correct shaft, assembly, and seals before ordering.
