Match your motor’s serial number, exact shaft part number, dimensions, and attachment details to its parts diagram. Length alone is not enough. For example, the 2032006 52-inch shaft listing specifies four holes at the top and particular Maxxum, Maxxum PRO, and Fortrex applications; it is not a universal replacement for every 52-inch motor.

On brushed Terrova, Ulterra, and Ultrex motors, the shaft is pressed into the lower unit’s center housing, so a bare shaft is not a separate replacement option. For some shaft lengths, a shaft-and-center-housing assembly allows you to reuse serviceable lower-unit components. Otherwise, a complete shaft-and-lower-unit assembly is needed. Find those replacements in our Minn Kota Shafts & Lower Unit Assemblies collection. QUEST shafts can be replaced separately and are in this collection.

Check our Minn Kota parts diagrams and serial number guide. For fitment help, text 815 246 2535 or email support@lakesidemarineandservice.com with your serial number and photos.

A shaft-length change may be possible on some models, but it is not a universal swap and may require additional parts. The options depend on the exact motor, its brushed or QUEST design, and the desired length. Do not assume a shaft listed for another length or model can be installed on your motor.

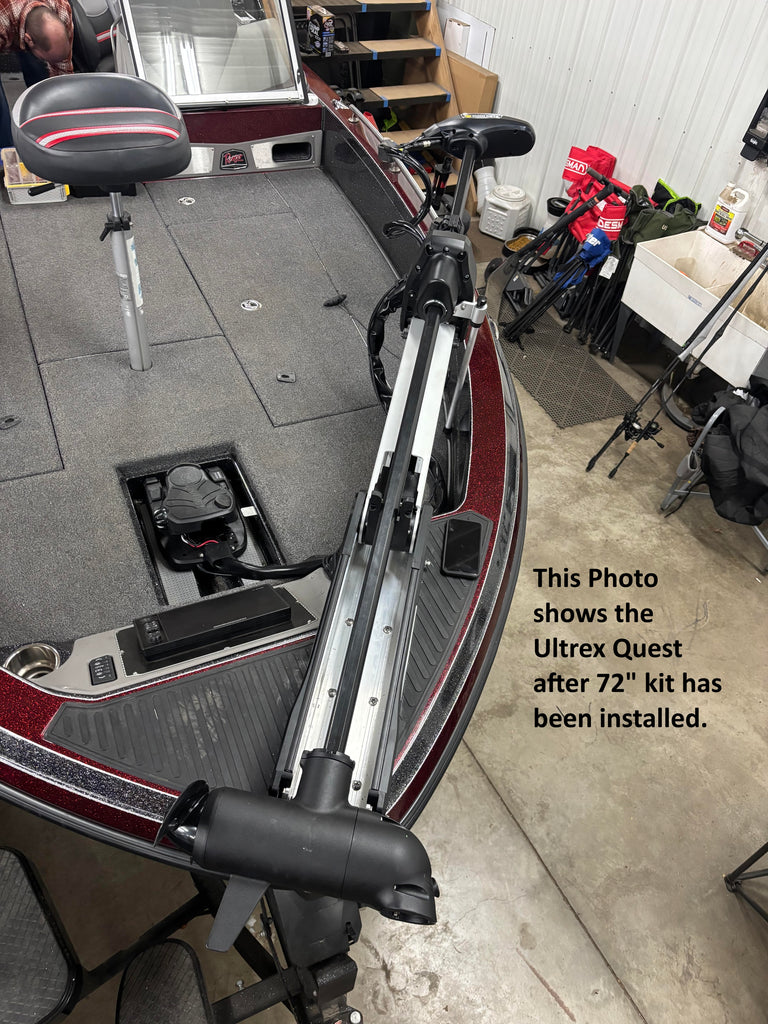

For example, the Ultrex QUEST 72-inch shaft extension kit is listed for extending 52-inch or 60-inch Ultrex QUEST models to 72 inches. It is not listed for 45-inch Ultrex QUEST models or brushed Ultrex motors. Review the full listing, including its contents and safety information.

Before ordering, text 815 246 2535 or email support@lakesidemarineandservice.com with your motor’s serial number, current shaft length, and desired length. Use our serial number guide and parts diagrams to help identify your motor.

No. Minn Kota depth collars and lift-assist collars are not all interchangeable. Match the collar to your motor’s exact model, generation, and parts diagram, not just its shaft diameter or model-family name.

For Terrova motors, compare the 2771500 Terrova depth collar, 2771505 Terrova T2 depth collar, and 2771523 Terrova lift-assist collar. The lift-assist collar listing is specifically for models with the lift-assist feature. The listings note changes during 2023, so a model year alone may not resolve fitment.

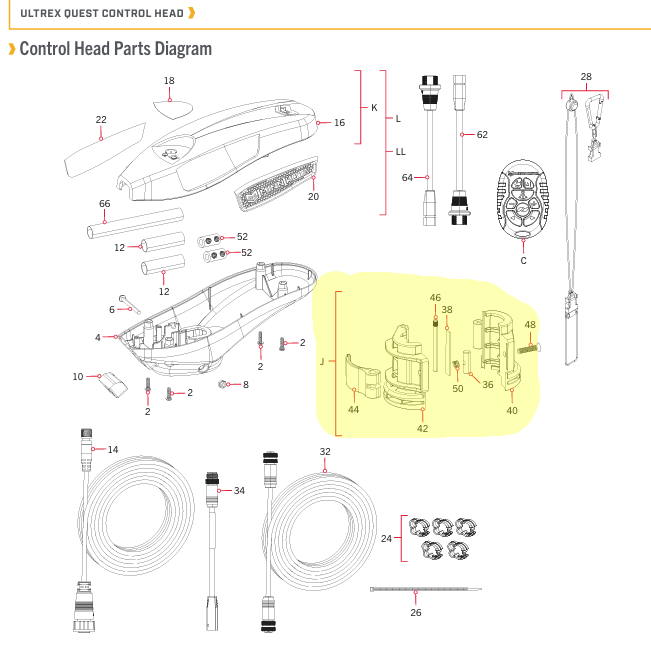

QUEST shafts are not compatible with their brushed-model counterparts. Collars must also be matched to their listed applications, including QUEST-specific parts such as the 2991532 Ultrex QUEST depth collar and 2991530 Terrova and Riptide Terrova QUEST depth collar assembly.

Check our parts diagrams or send your serial number by text to 815 246 2535 or email to support@lakesidemarineandservice.com for help confirming fitment.

If the depth collar is slipping or failing to hold the shaft at the selected depth, check that the collar is tight enough. Tighten the depth collar to secure the shaft at the desired depth. Also inspect the collar for cracks and check the thumb screw or bolt for stripped threads. Replace the collar or affected hardware if damaged.

On brushed Ultrex models, this slipping issue has also been addressed with an improved depth collar. See the 2991531 Improved Minn Kota Ultrex Depth Collar, which replaces 2771501. This replacement is for brushed Ultrex models, not QUEST models. The Ultrex QUEST depth collar already has the improved design.

For help confirming the correct collar, text 815 246 2535 or email support@lakesidemarineandservice.com with your motor’s serial number and photos. You can also check our Minn Kota parts diagrams and serial number guide.

No. Individual replacement shafts come with the shaft only. Shaft seals and O-rings are sold separately.

When replacing a threaded shaft on a brushed motor, use Loctite 271 on the shaft threads to seal the connection. Brushed Terrova, Ulterra, and Ultrex models are different: their shafts are pressed into the center housing, so a bare shaft is not a separate replacement option. For those models, see our Minn Kota Shafts & Lower Unit Assemblies collection.

When replacing a QUEST shaft, you will need the correct wire seal and O-ring. Choose the wire seal for your motor and built-in sonar configuration:

• 880-041 wire seal — for DSC-equipped QUEST models listed on the product page.
• 880-040 wire seal — for MDI/MSI QUEST applications listed on the product page.
• 880-042 wire seal — for listed Instinct and Riptide Terrova QUEST models without built-in sonar.
• 2294630 O-ring — check the product page for its specific QUEST applications.

The wire seals above are alternatives for different applications. You do not need all three wire seals.

Confirm the correct seal and O-ring using your Minn Kota parts diagram. For help, text 815 246 2535 or email support@lakesidemarineandservice.com with your motor’s serial number. See our serial number guide if you need help identifying your motor.

Use our Minn Kota serial number guide to help identify your motor. Serial-number label locations vary by model, so use the guidance for your specific motor rather than assuming every label is in the same place.

Send the complete serial number, motor model, any existing part number, and clear photos of the shaft, collar, or damaged component. For a shaft-length change, include the current and desired lengths. Our Minn Kota parts diagrams can help you identify the part you need.

Text 815 246 2535 or email support@lakesidemarineandservice.com for help confirming the correct shaft, collar, assembly, or additional components before ordering.
