07-16 Minn Kota 12V Terrova iPilot BT System Upgrade Kit

SKU: j13
$799.99 $941.03

07-16 Minn Kota 12V Terrova iPilot BT System Upgrade Kit may be backordered, but it will ship as soon as it is back in stock. Please call or text 815 246 2535 for availability.

 Lakeside Marine & Service is a Minn Kota Authorized Service Center.  We sell and service all Minn Kota Products & Parts. This Minn Kota Part is brand new directly from Minn Kota.  If you have any questions or need helping finding parts please contact us.

Minn Kota Terrova iPilot BT System Upgrade Kit

This kit will upgrade any 2007 to 2016 12V Terrova with our without iPilot to the current iPilot BT system to get these features:

  • More accurate spot lock
  • Ability to connect and control your trolling motor from your smart phone
  • Spot Lock Jog Feature
  • Record Paths
  • Legacy & Advanced Autopilot

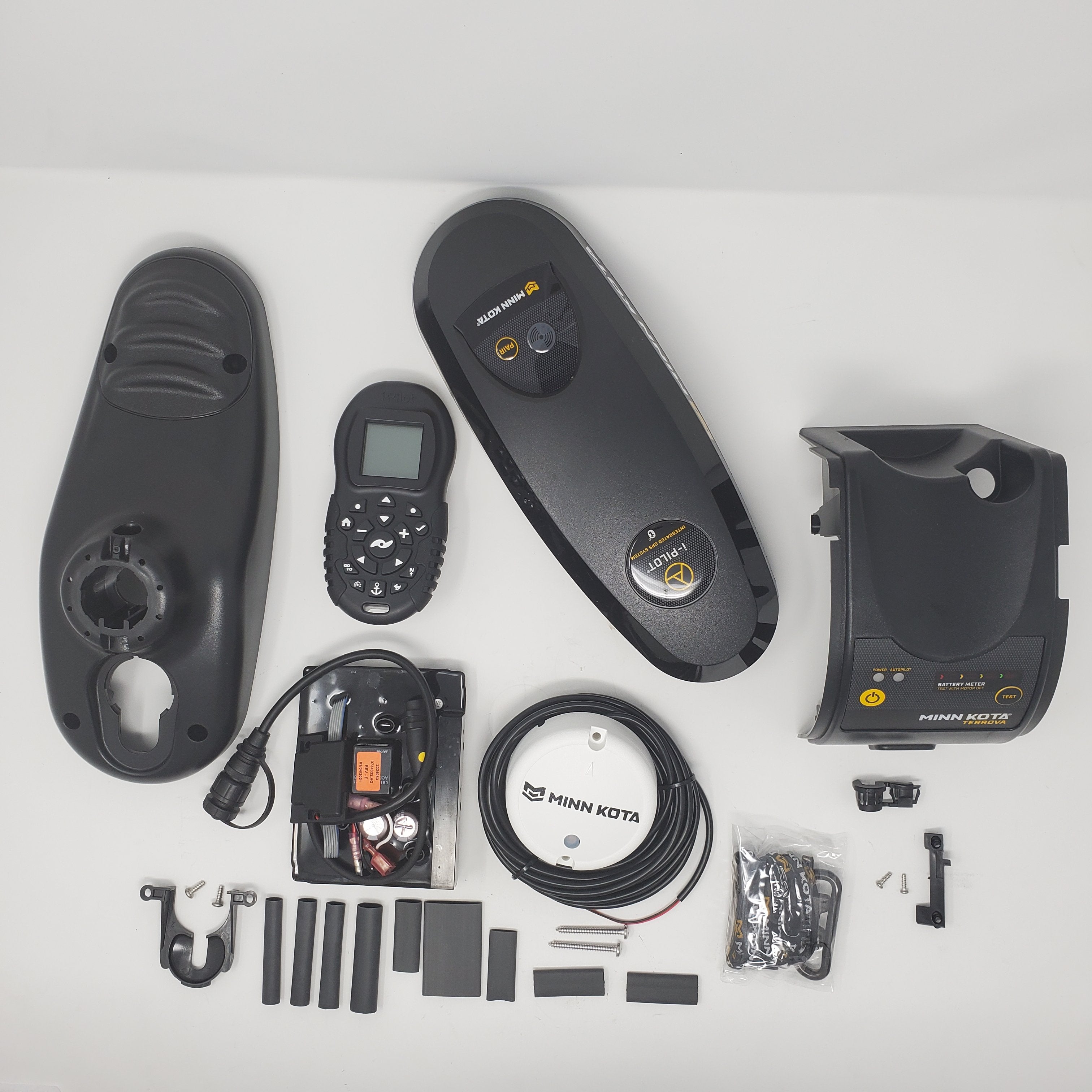

This kit includes the following parts:

  • 2774067 Control Board
  • 2774157 iPilot BT Upgrade Kit including iPilot Head, iPilot Remote, Heading Sensor and Lanyard
  • 2292500 Control Box
  • 2326530 Center Housing
  • 2325657 Center Housing Decal
  • 2320830 Locking Tab
  • 2383428 Locking Tab Screws x 2
  • 2322901 Strain Relief
  • 2884706 Insert Plug

Installation Instructions

If you want to use a foot pedal you will need to purchase the T2 Foot Pedal as the T1 foot pedal will not work with the new control board.

      Add GPS-powered i-Pilot BT to your trolling motor for automatic boat control - set Spot-Locks, record and retrace paths, and more.

      • i-Pilot® GPS Trolling System: The most-trusted GPS system in fishing. i-Pilot® uses GPS to control your trolling motor with incredible features that keep you on the fish. Set Spot-Locks, record paths, control speed and steering, and more. i-Pilot makes boat positioning and control automatic, and you can take command from its easy-to-read large LCD screen.
      • Spot-Lock: Just press a button, and Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on i-Pilot GPS systems, Spot-Lock gives you the power to stay right on top of any productive fishing spot automatically, without touching your trolling motor. With the heading sensor you can use Jog to move your Spot-Lock location five feet in any direction. Activate Spot-Lock from the i-Pilot remote.
      • AutoPilot™: Automatically navigate your boat in any direction you choose. Just point the head of your trolling motor in the direction you want to travel, activate AutoPilot™, and your trolling motor will keep you on that heading automatically, even correcting for wind, waves and current.
      • Mobile App Compatibility: Control i-Pilot directly from your Apple® or Android™ device with our mobile app. You get quick command of speed, steering, Spot-Lock and Advanced AutoPilot — plus the ability to update i-Pilot software.
      • As this is a parts kit there is no warranty unless it is installed by a Minn Kota Authorized Service Center.  If the kit is installed by an ASC then there is a 90 day warranty.
      • Terrova trolling motors with iPilot BT can also use a foot pedal (sold seperately) in conjunction with the iPilot Remote.  Terrova Foot Pedal for BT models is 1866076.

        WARRANTY/RETURN INFORMATION: All Minn Kota electrical items are tested first by the manufacturer and a second time before leaving our facility. Since they are tested twice, the chance of the items being inoperative is very unlikely. In the event that you have any questions regarding the installation of your item, please contact us before doing so. We do not accept returns on used/installed electrical items. If for some reason you do not need the part you've ordered, it must be returned as unused, uninstalled in the original package with all of the original contents.
