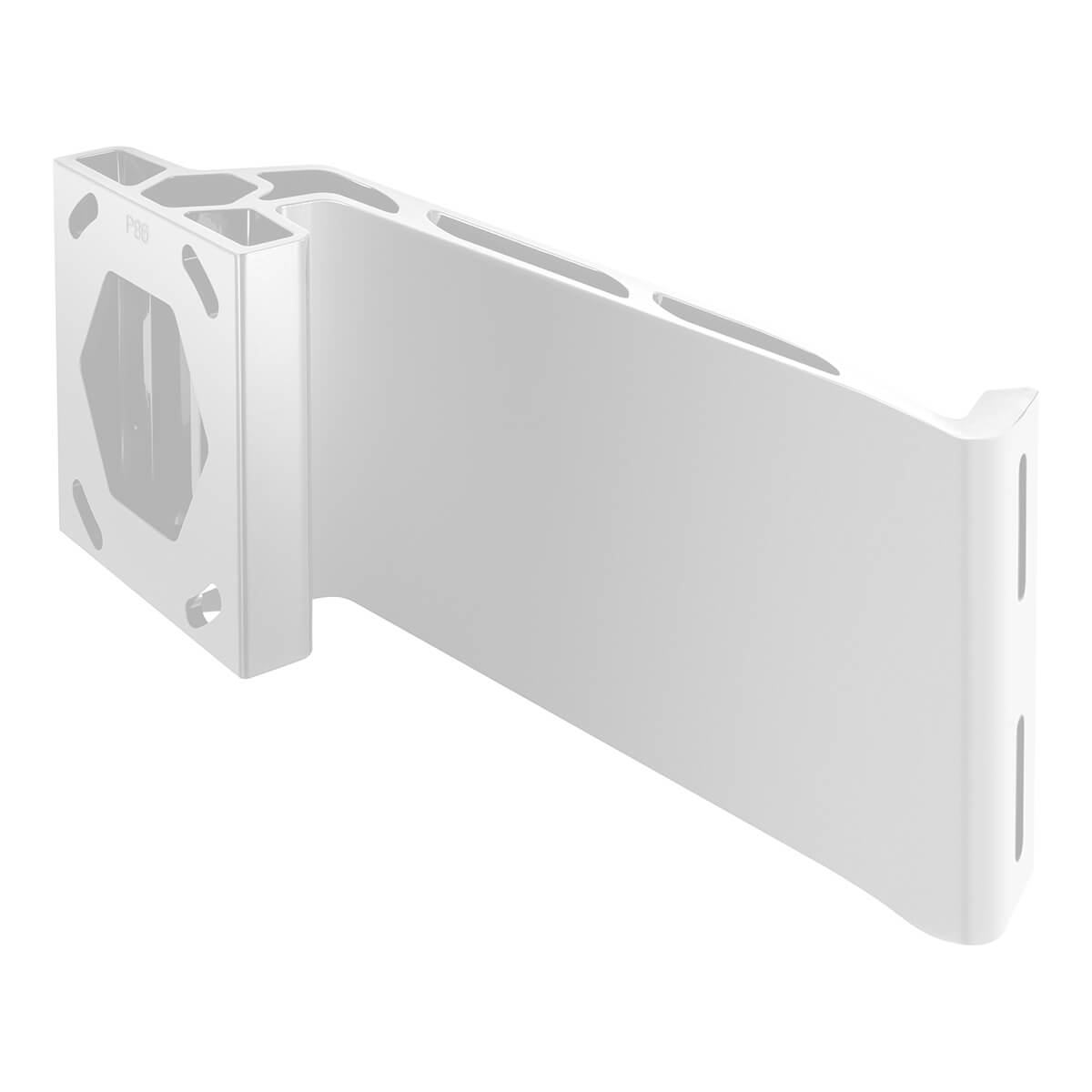

White Minn Kota Raptor P86 port jack plate bracket 1810387, angled view showing mounting slots

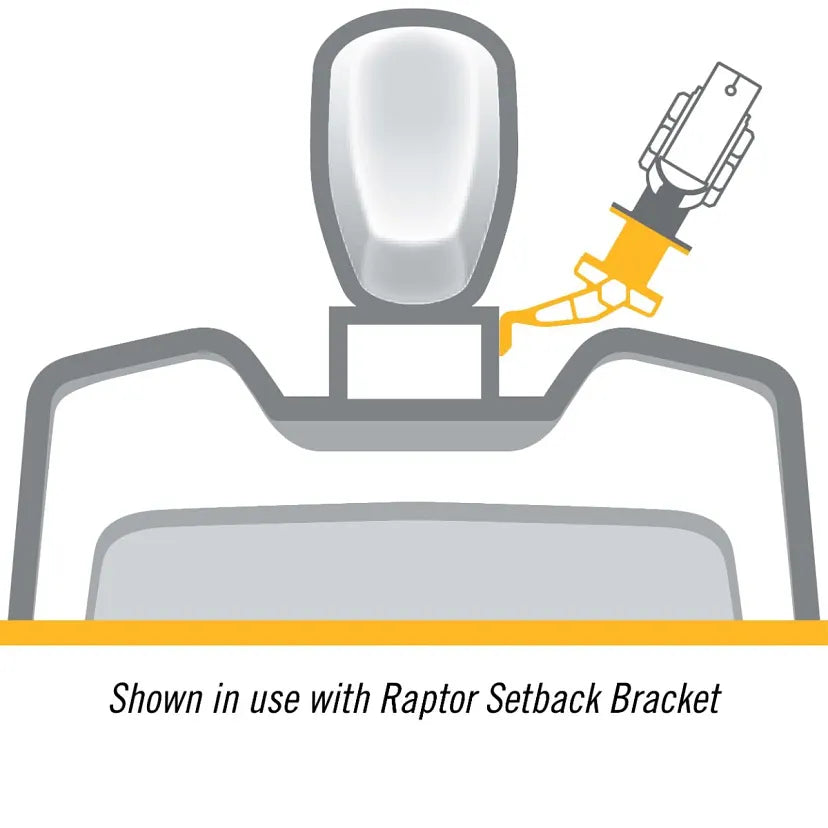

Diagram showing a Raptor port jack plate bracket used with a Raptor Setback Bracket on a curved transom

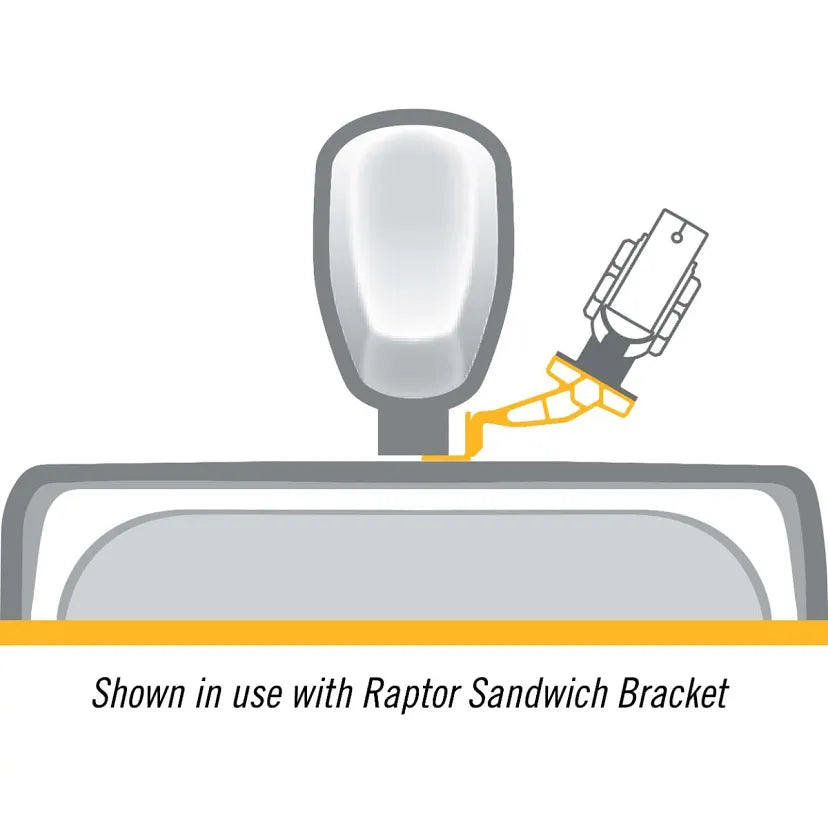

Diagram showing a Raptor port jack plate bracket used with a Raptor Sandwich Bracket on a flat transom

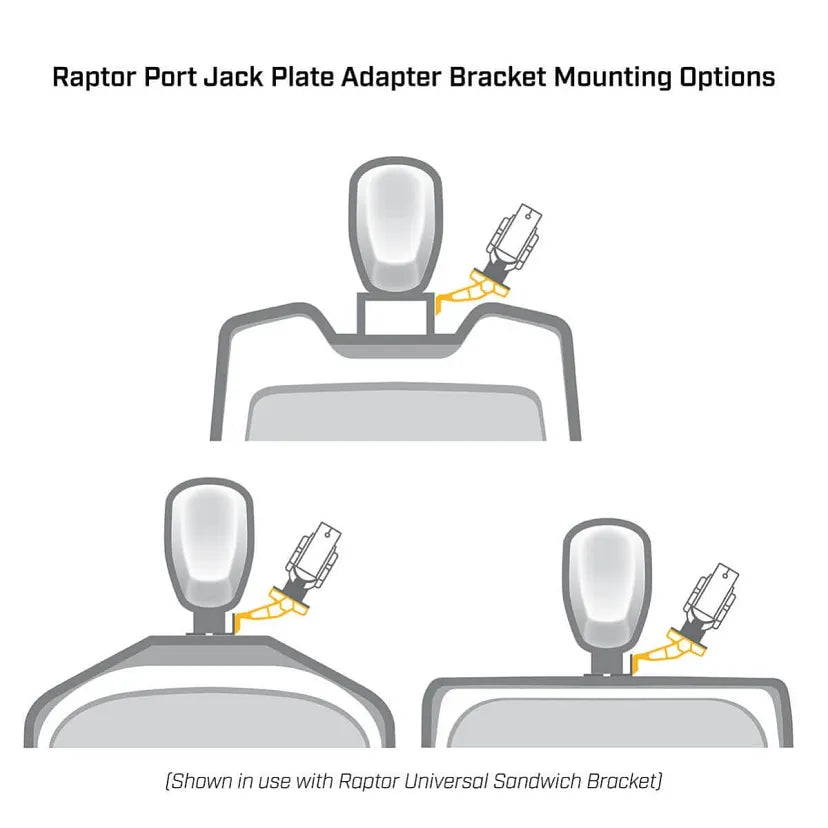

Raptor port jack plate bracket mounting options diagram showing three transom configurations with a universal sandwich bracket

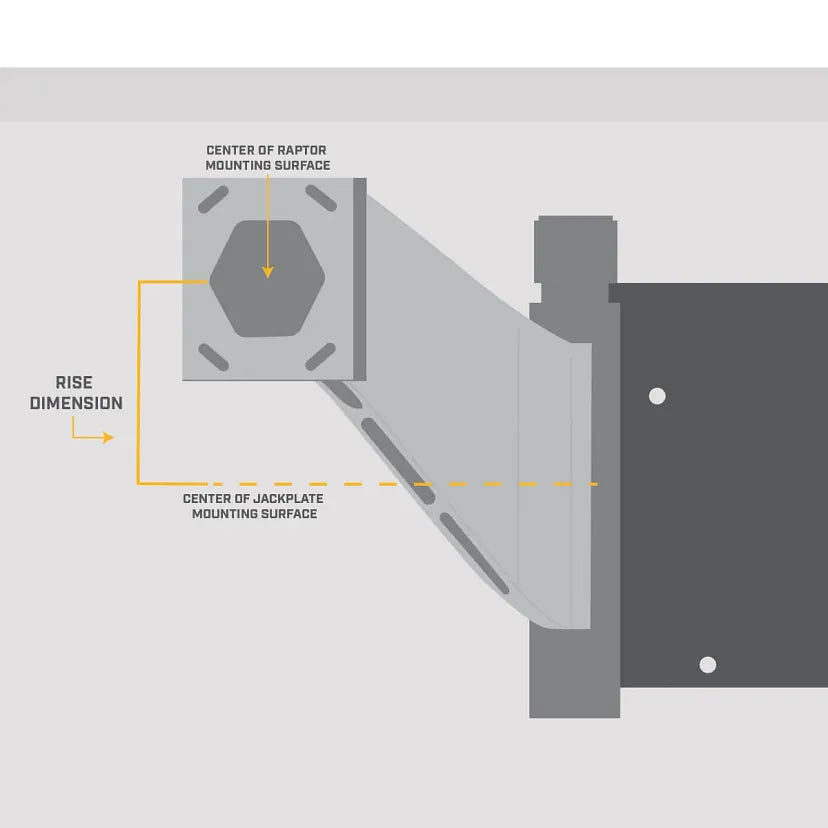

Diagram showing vertical rise measured between the centers of the jack plate and Raptor mounting surfaces

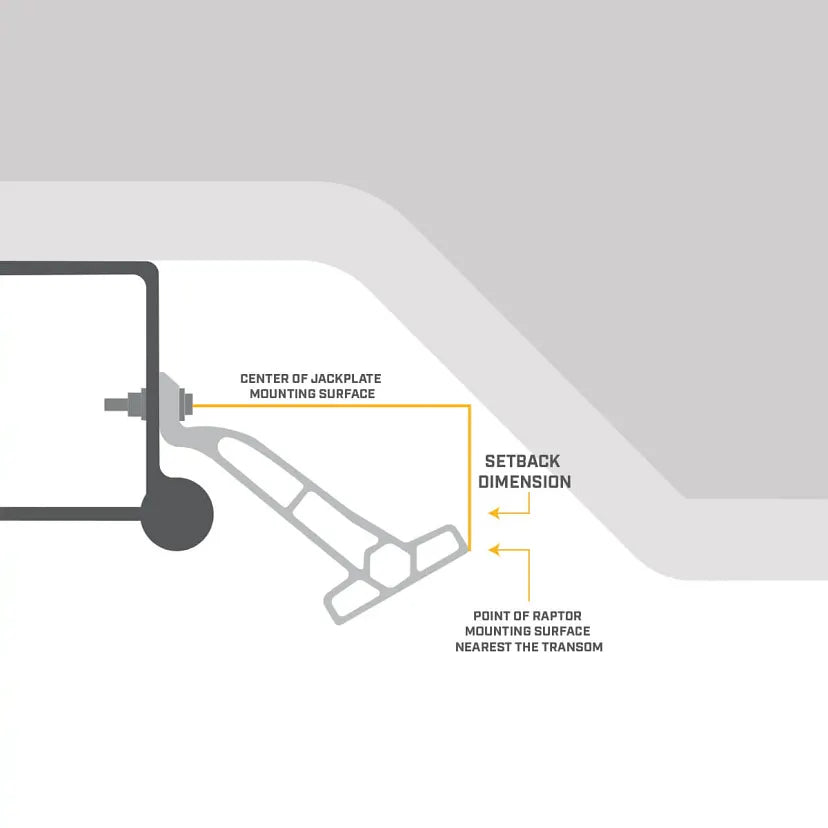

Diagram showing setback measured from the center of the jack plate mounting surface to the Raptor mounting surface nearest the transom
White Minn Kota Raptor P86 port jack plate bracket 1810387, angled view showing mounting slots
Diagram showing a Raptor port jack plate bracket used with a Raptor Setback Bracket on a curved transom
Diagram showing a Raptor port jack plate bracket used with a Raptor Sandwich Bracket on a flat transom
Raptor port jack plate bracket mounting options diagram showing three transom configurations with a universal sandwich bracket
Diagram showing vertical rise measured between the centers of the jack plate and Raptor mounting surfaces
Diagram showing setback measured from the center of the jack plate mounting surface to the Raptor mounting surface nearest the transom

Minn Kota Raptor P86 Jack Plate Adapter Bracket – Port, 8" Setback, 6" Rise, White 1810387

SKU: 1810387
$429.99
By Minn Kota
Minus Plus

Port-Side Mounting with Added Setback

The Minn Kota Raptor P86 Jack Plate Adapter Bracket 1810387 mounts your Raptor shallow water anchor to the jack plate on the port side of your boat. This white bracket provides 8 inches of setback and 6 inches of vertical rise.

Single-piece aluminum construction with a white powder-coated finish. Slotted mounting holes allow position adjustment.

Features

  • Port-side jack plate mounting for Minn Kota Raptor shallow water anchors.
  • Provides 8 inches of setback and 6 inches of vertical rise.
  • Lightweight, single-piece aluminum construction.
  • White powder-coated finish for corrosion resistance.
  • Slotted mounting holes for position adjustment.

Compatibility

Designed for Minn Kota Raptor shallow water anchors. This bracket is not intended for use with Talon shallow water anchors. Confirm jack plate compatibility and installation requirements before purchasing.

Technical Specifications

  • Brand: Minn Kota
  • Model: Raptor P86 Jack Plate Adapter Bracket
  • Part number: 1810387
  • Mounting location: Port jack plate
  • Setback: 8 inches
  • Vertical rise: 6 inches
  • Material: Aluminum
  • Finish: White powder coat
  • UPC: 029402050246
  • Warranty: Five-year warranty

What's Included

  • White Raptor P86 port jack plate adapter bracket (1810387).
  • Stainless steel mounting hardware.
